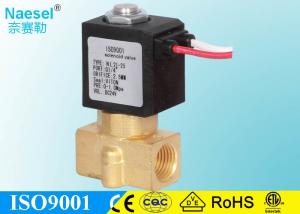

Custom Two Way Solenoid Valve , Reliable Shaft Hollow Liquid Solenoid Valve

Custom Solenoid Valve Special 2 3 Way Valve Shaft Hollow Solenoid Valve

Custom Solenoid Valve Special 2 3 Way Valve Shaft Hollow Solenoid Valve

SCO Red Hat Solenoid Valve Replaceable Brass Water Solenoid Valve

•

1. How To Order

---

Model Orifice Port Thread Body Seal Coil Voltage

NLT31 10-1.0 40-4.0 1-1/8" G- G B-Brass N-NBR SA11B 1-AC220V 2-DC24V

NLT32 25-2.5 45-4.5 2-1/4" N- NPT S-SS316/304 E-EPDM S91B 3-AC110V 4-DC12V

NLT51 30-3.0 50-5.0 Flange R- BSPT V-FRM/Viton 5-AC24V 6-DC36V

NLT61 35-3.5

NLT31 normally closed 2/3 way solenoid valve

NLT32 normally open 2/3 way solenoid valve

NLT51 normally closed Plate type 2/3 way solenoid valve

NLT61 normally closed Plate type 2/3 way solenoid valve

Example : NLT32 30 1 GBN S91B1: NLT32 Series, normal open, 3.0mm orifice, G1/8", brass body, NBR seals, AC220V.

---

2. Solenoid Valve Specification

Medium: Air, water, steam, oil, etc. Temperature: NBR seal:-10℃~80℃(14℉~176℉)

Orifice: 1.0, 1.5, 1.6 2.0, 2.5, 3.0,3.5,4.0, EPDM seal:-30℃~120℃(-22℉~248℉)

5.0, 6.0, 8.0, 10.0(mm) Viton seal:-30℃~150℃(-22℉~302℉)

PTFE seal:-60℃~200℃(-76℉~392℉)

Pressure: NLT31:0.0MPA~1.5MPA (0.0PSI~215PSI)

NLT32:0.0MPA~1.5MPA (0.0PSI~215PSI) Port size: 1/8”, 1/4”, 3/8”, 1/2”

NLT51:0.0MPA~1.5MPA (0.0PSI~215PSI) Port thread: NPT, G Thread

Voltage: DC:12VDC, 24VDC, 36VDC, Coils: SA11B, 9VA(AC),6W(DC),IP65,100%ED

AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC S91B,22VA(AC),17W(DC),IP65,100%ED

Tolerance: ±10% Character: 1. Compact design to save the space.

Material: Body- Brass, stainless steel, Aluminum, 2. Direct acting, 0 bar generated.

Seal- VITION, NBR, EPDM, PTFE

Armature- SS304

Plunger- SS430F

Stop- SS430F

Spring- SS304

Shading Rings- Copper

---

3. Detailed Information

Model	Port	Orifice	CV	Min. Pressure	Max. Pressure		Body Material	Seal Material	Coil
					AC(9VA)	DC(10W)
NLOG11251XXX	1/8"	2.5	0.18	0.0Mpa	1.0Mpa	1.0Mpa	Brass SS304	NBR EPDM Viton (FKM)	SA11B
NLOG11301XXX	1/8"	3.0	0.3	0.0Mpa	1.0Mpa	1.0Mpa			SA11B
NLOG11252XXX	1/4"	2.5	0.18	0.0Mpa	1.0Mpa	1.0Mpa			SA11B
NLOG11302XXX	1/4"	3.0	0.3	0.0Mpa	1.0Mpa	1.0Mpa			SA11B

4. Diemsion

---

---

5. Packing Detail

Plastic Sealed packing to prevent metal being oxidized.

---

6. More Product Photo and Certifications

---

7. Why US?

Our core advantages to pursue Your Success.

1.Reliable Quality (We are OEM supplier of ASCO and Parker)

2.Over 20 years solenoid valve design and customize experience.

3.Mark Service(both Product and packing wiht your design and logo)

4.Related Supply Service, including Festo, SMC, , Airtac, Shako.

5.Good English communication

6.Opening Mind to growing with clients for different products.

(please continue reading to find out more detail)

---

8. Replaceable parts

EMC
